OUR REALIZATIONS
In the section of installations we would like to present our realizations.
These presentations are proof of our experience and the quality we bring to every project. We offer a wide portfolio of specialized solutions that are designed to meet the diverse requirements of our clients.
More than 250 satisfied customers
TRNAVA – GLASS STOCK RACK C2
A challenging order for the client, which took place in 2 phases for a total of 82 drawers for storing boxes of glass „end cups“ for a glass format of 3210x2550x240 mm with a load capacity of one position of 2500 Kg. The total load of the entire structure was designed to store 205,000 Kg of glass under full load.
Constructed including design, drawings with maximum space yield and special passage between sections.
Country: Slovakia
Machine: Glass stock rack RAM
Delivered: 2023

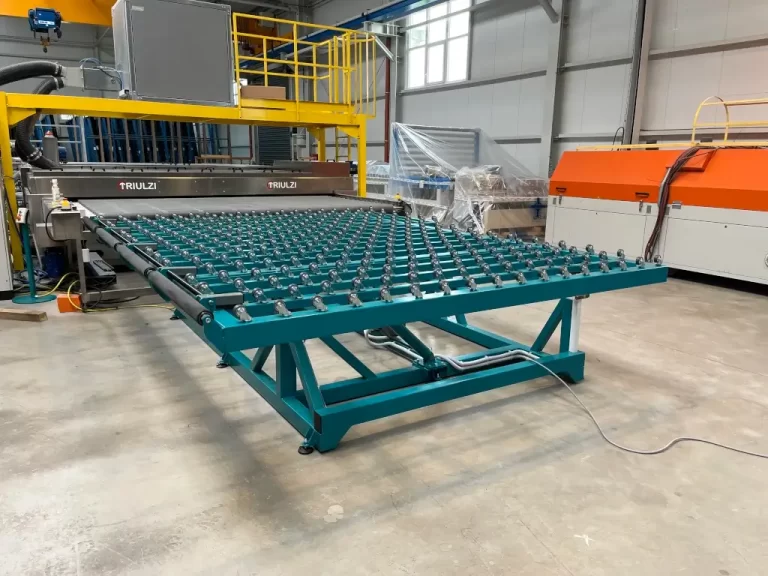

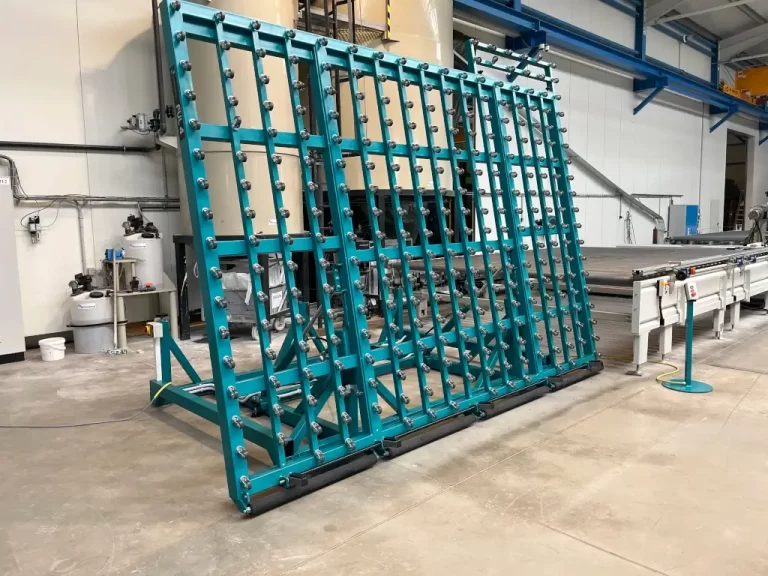

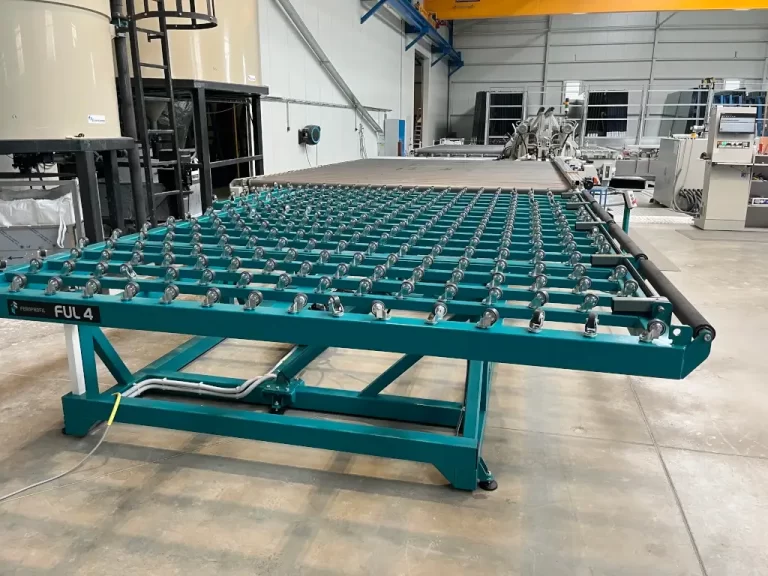

ISOSKLO – GLASS TILTING TABLES
Complete design of customized tilting handling tables in front of and behind the insulating glass production line with front rubberized rollers for manual loading of glass and hydraulic tilting for loading by crane to loading points, which simply fold down after the table is brought to a horizontal position and do not hinder the smooth movement of glass on the table work surface.
The maximum load of the table has been designed, taking into account its construction and the installation of the hydraulic unit, to 800 kg, with a maximum glass dimension of 2800×4000 mm.
Country: Czech Republic
Machine: Glass tilting table ROL4
Delivered: 2023

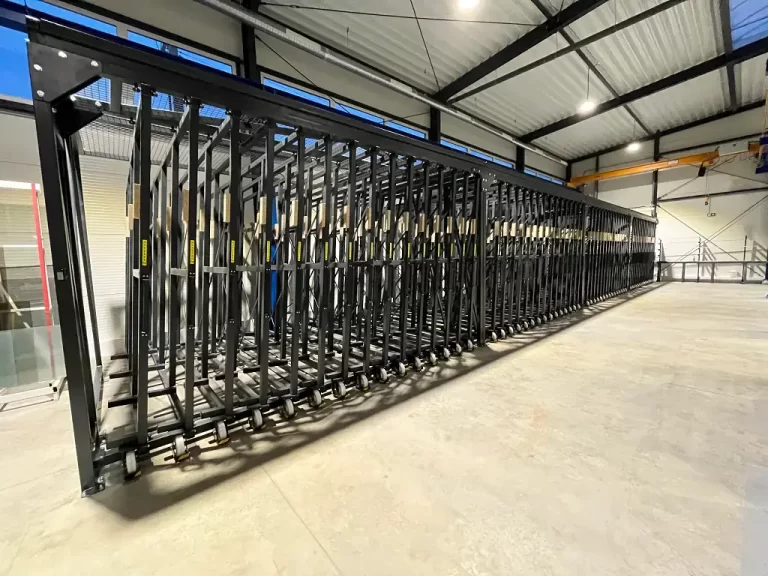

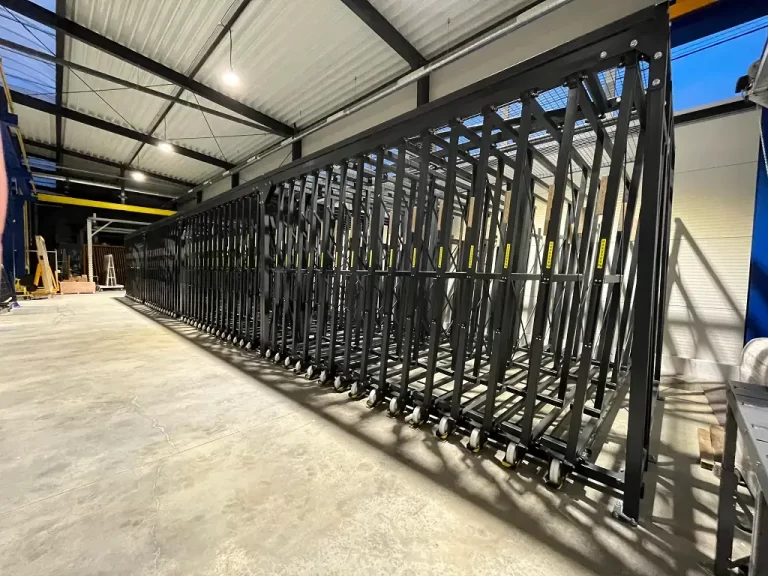

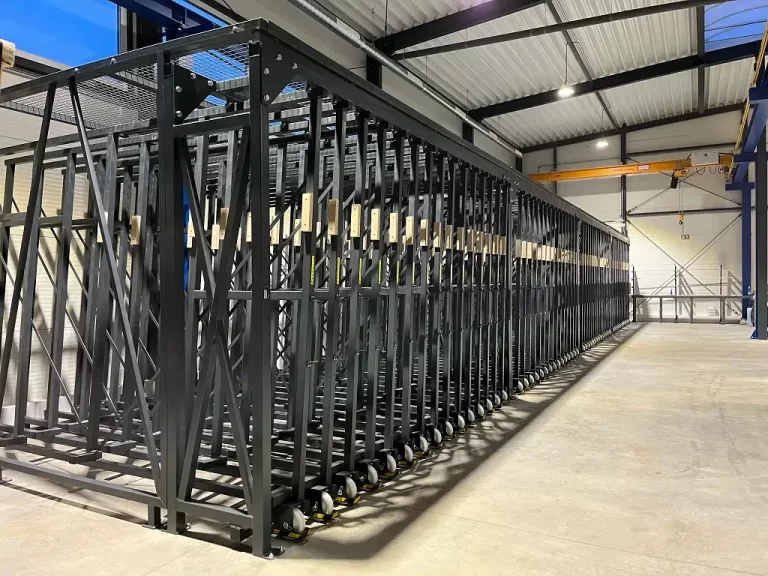

SKLOFIX – GLASS STOCK RACK C2
Complete turnkey implementation, from drawing documentation and visualization of the distortion, including the crane track, which is placed between the stackers so that nothing prevents the smooth operation of the sockets between the columns, while maximizing the use of space according to the client’s requirements.
It is a large storage system of stackers for storing boxes of glass „Endcups“ for glass size 2550x3210mm with a total of 60pcs drawers with a total capacity of 150,000Kg.
Country: Slovakia
Machine: Glass stock rack RAM
Delivered: 2024

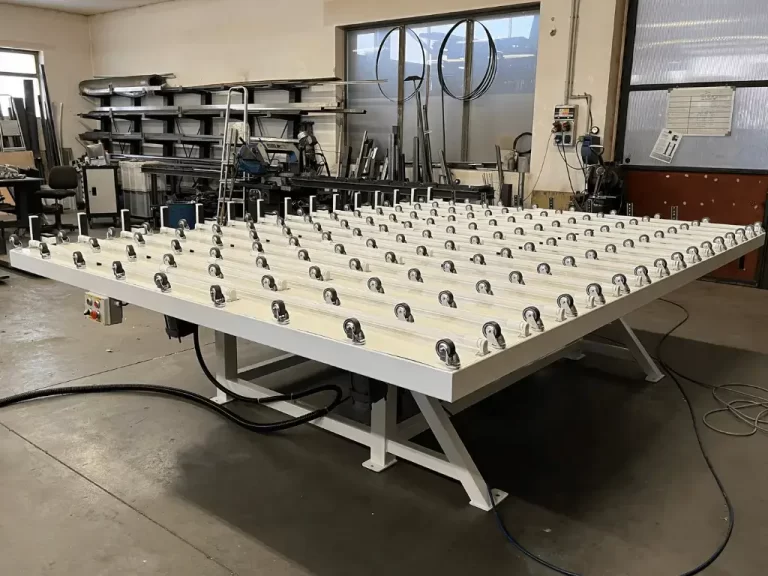

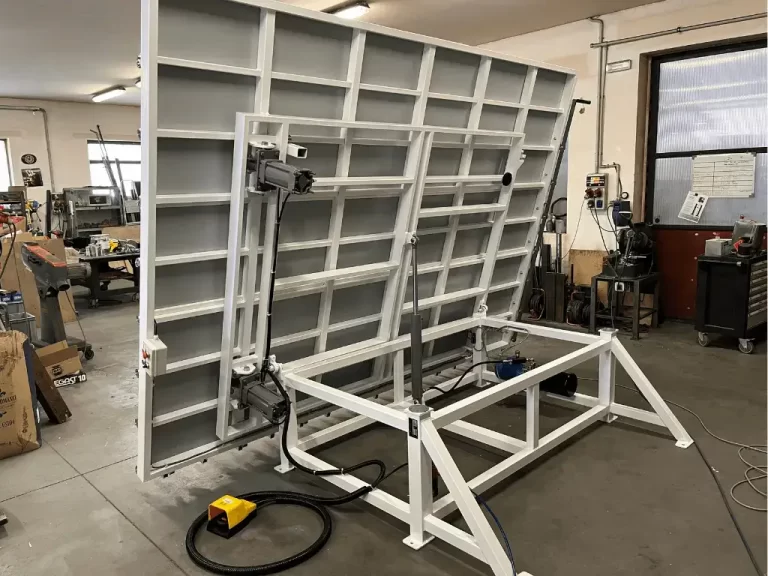

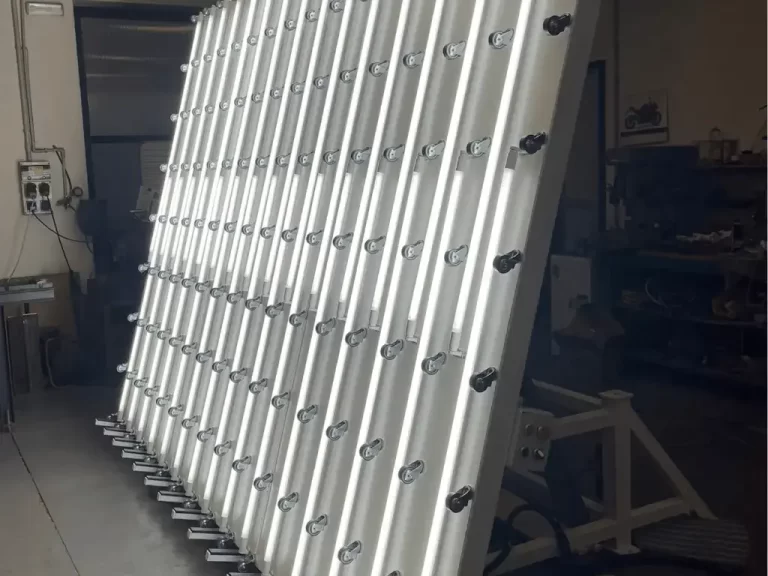

ILLUMINATED GLASS TILTING TABLE
A special type of table was designed for an Italian client, combining the tilting of one axis by a hydraulic unit and the other axis pneumatically to tilt the table for the glass exit off the next line.
The table was equipped with LED lights to check the quality of the glued surfaces between the glass.
The maximum load of the table was designed to 800 kg for a maximum glass size of 3210×2550 mm.
Country: Italy
Machine: Glass tilting table ROL4
Delivered: 2023

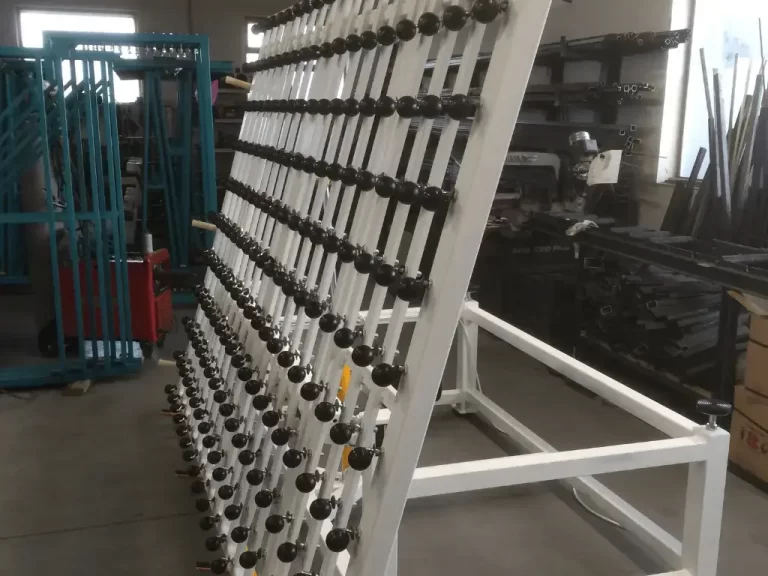

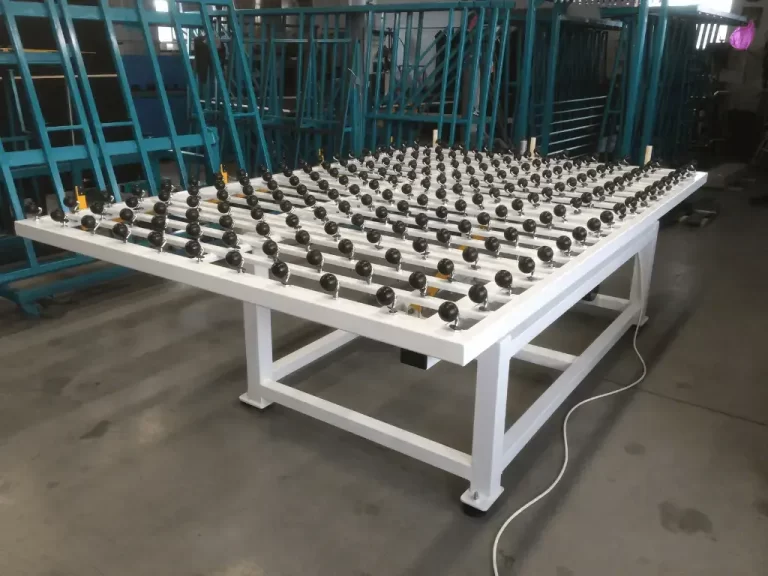

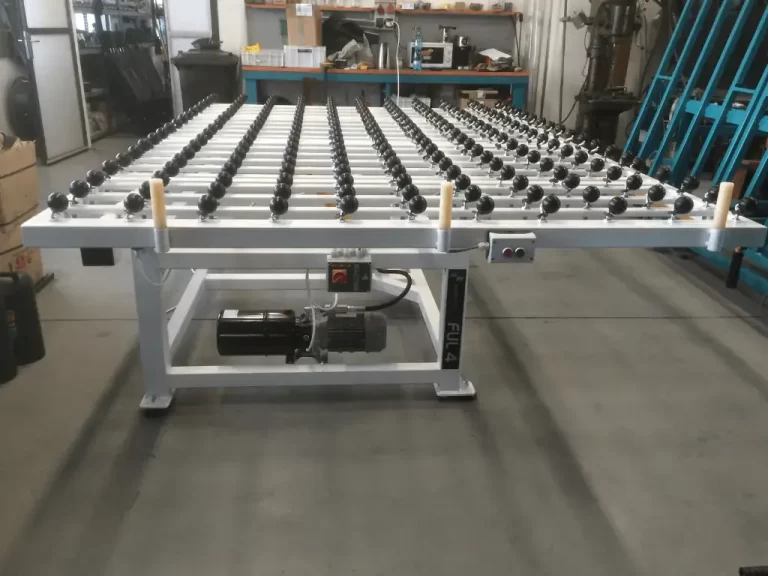

GLASS TILTING TABLE FOR GLASS BONDING
Simple hydraulically folding table with removable stop points for gluing and sliding glass with rubber swivel rollers for maximum smoothness of glass movement on the surface.
The dimensions of the table’s working area and its load can be varied according to the client’s requirements, with load ranging from 200-800 kg and a maximum glass format of 3210×2550 mm, etc.
Country: Italy
Machine: Glass tilting table ROL4
Delivered: 2021

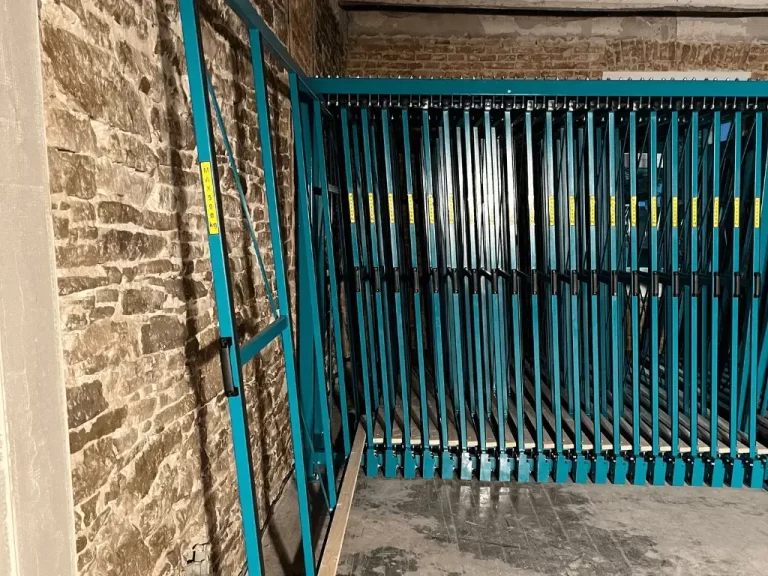

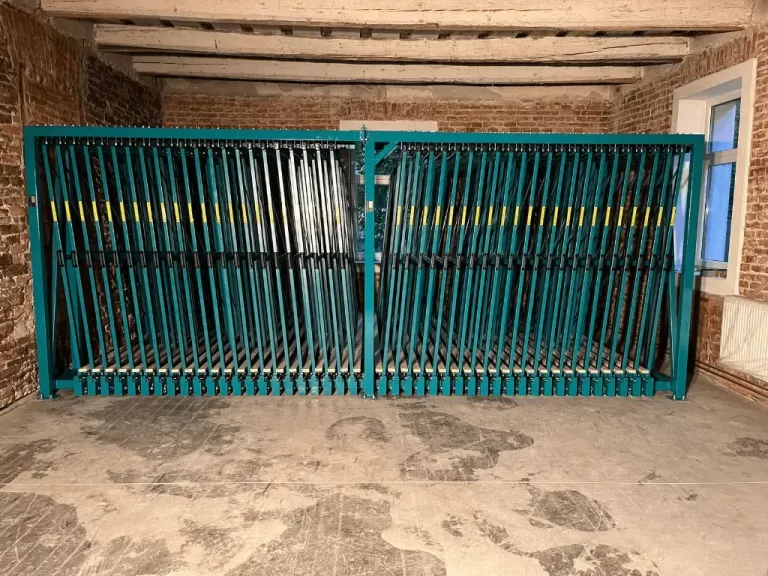

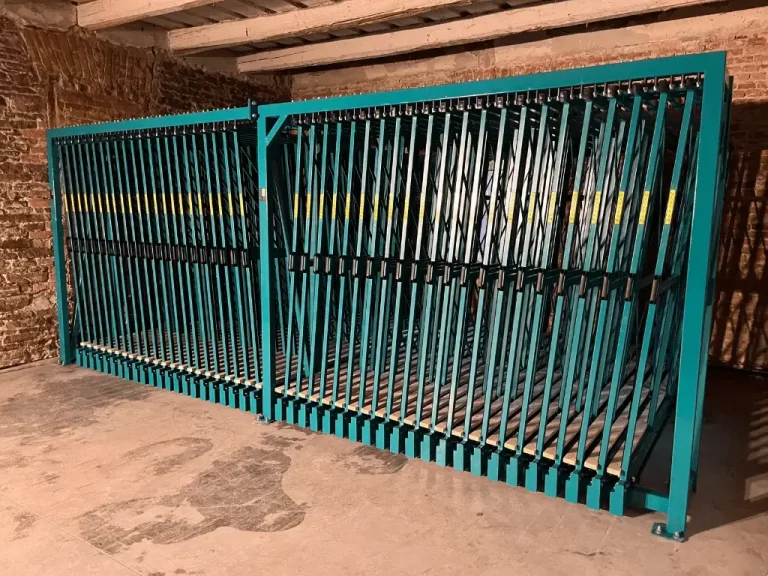

GLASS STOCK RACK A2 DOLNÝ KUBÍN
At first glance, an old wine cellar, which instead of wine filled the maximum possible number of A2 drawers with a total of 44 drawers.
A sophisticated installation that increased the efficiency of glass storage and handling in a medium-sized operation with an emphasis on maximising the use of the space.
The maximum dimension of stored glass 1900x2550x60 mm. Maximum position load 500 kg. Total design load at full load 22 000 kg.
Country: Slovakia
Machine: Glass stock rack RAM
Delivered: 2023

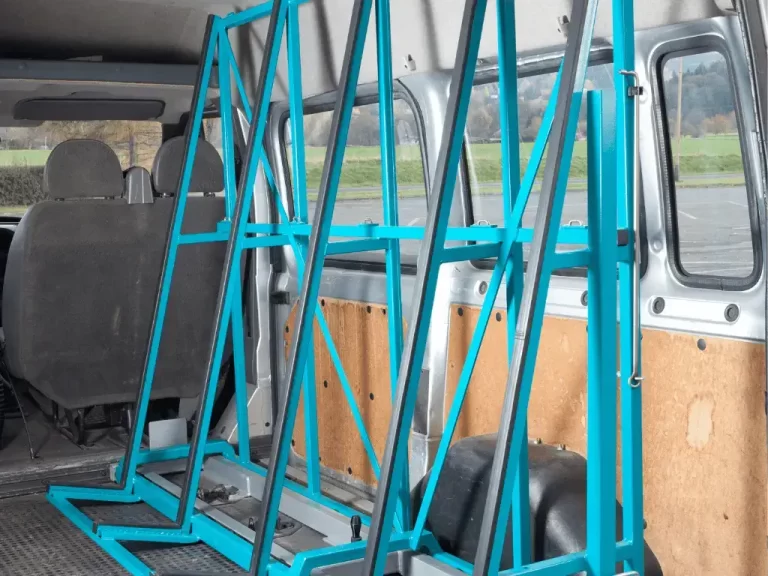

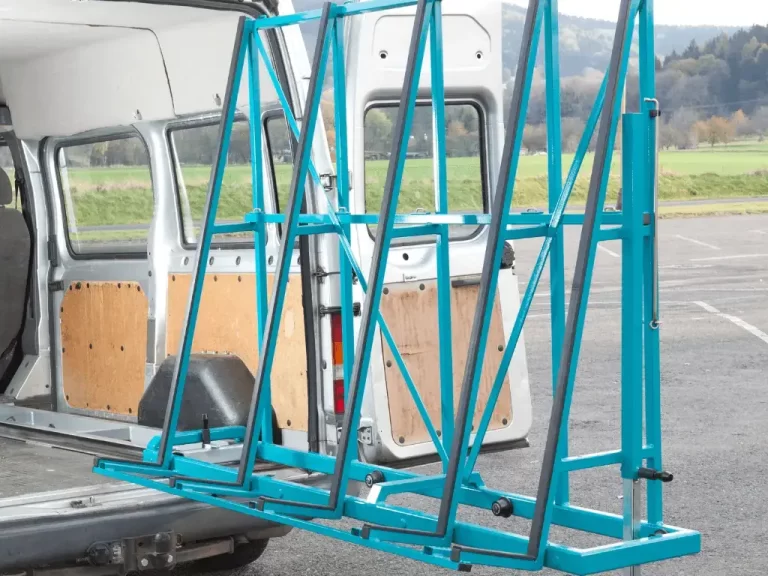

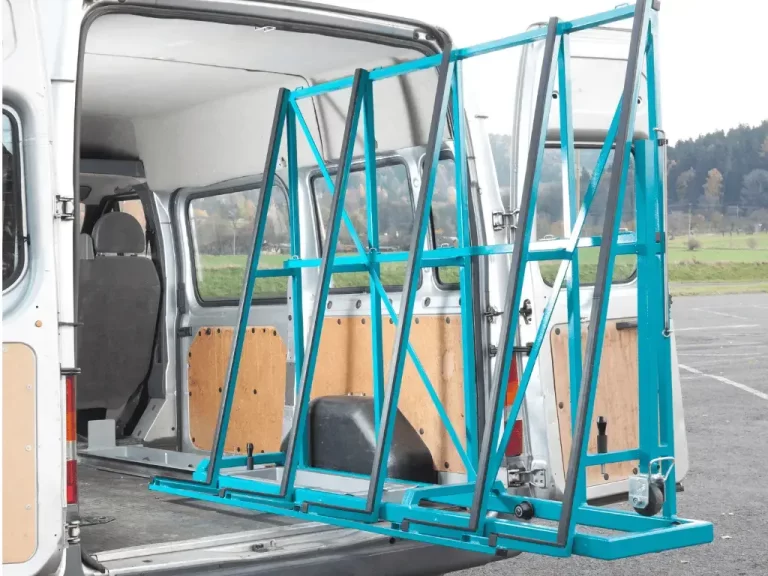

EXTENDABLE STAND FOR DELIVERY
The extendable delivery stand is the ideal tool for transporting plate glass or finished products to your clients.
The stand can extend more than half its length without the support of a caster, with the support of a caster it can slide almost all the way out of the vehicle.
The smooth, effortless operation will make glass handling more comfortable for your workers, increasing the efficiency and safety of glass transportation.
The load capacity of the rack and its dimensions vary by the type of van it is designed to fit.
Country: Czech Republic
Machine: Van Stand (Custom made)
Delivered: 2020

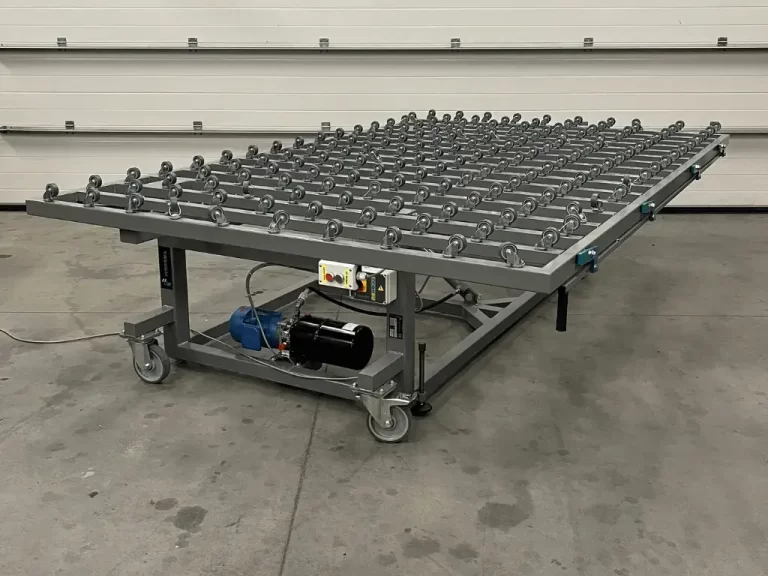

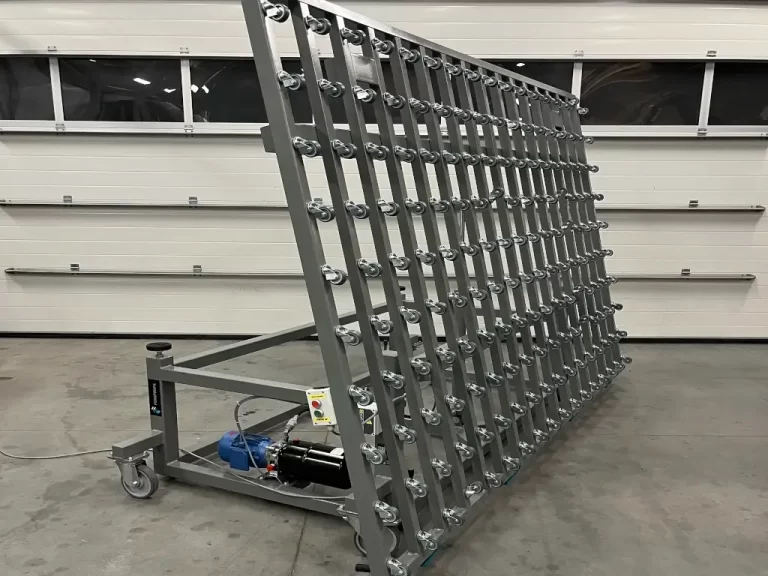

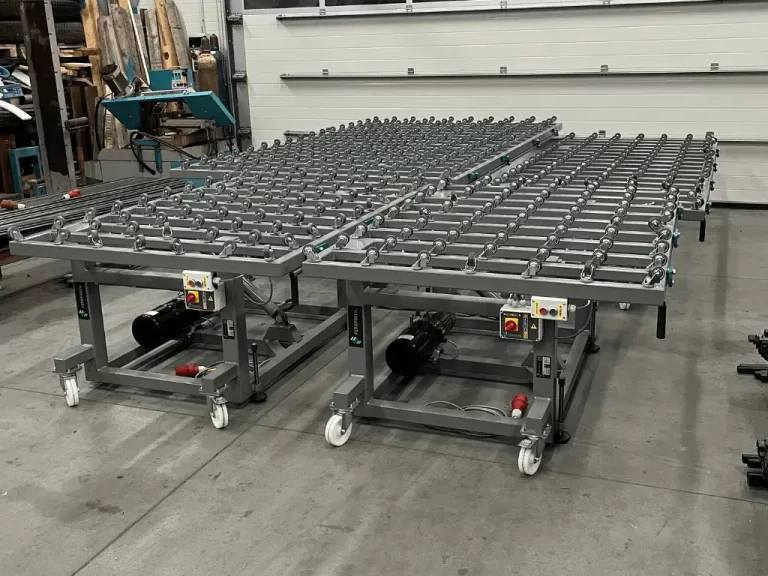

CROATIA - GLASS TILTING TABLES
Complete design based on our client’s requirements and then production of hydraulically folding tables for a Croatian client.
These tables are designed in different sizes, they also have movable castors and height adjustable legs for fixing the position and height regulation of the table.
Complete design based on our client’s requirements and then production of hydraulically tilting handling tables for the Croatian client.
These tables are constructed in different sizes, they also have movable castors and height adjustable legs for position fixation and table height regulation.
Country: Croatia
Machine: Glass tilting table ROL4
Delivered: 2023
