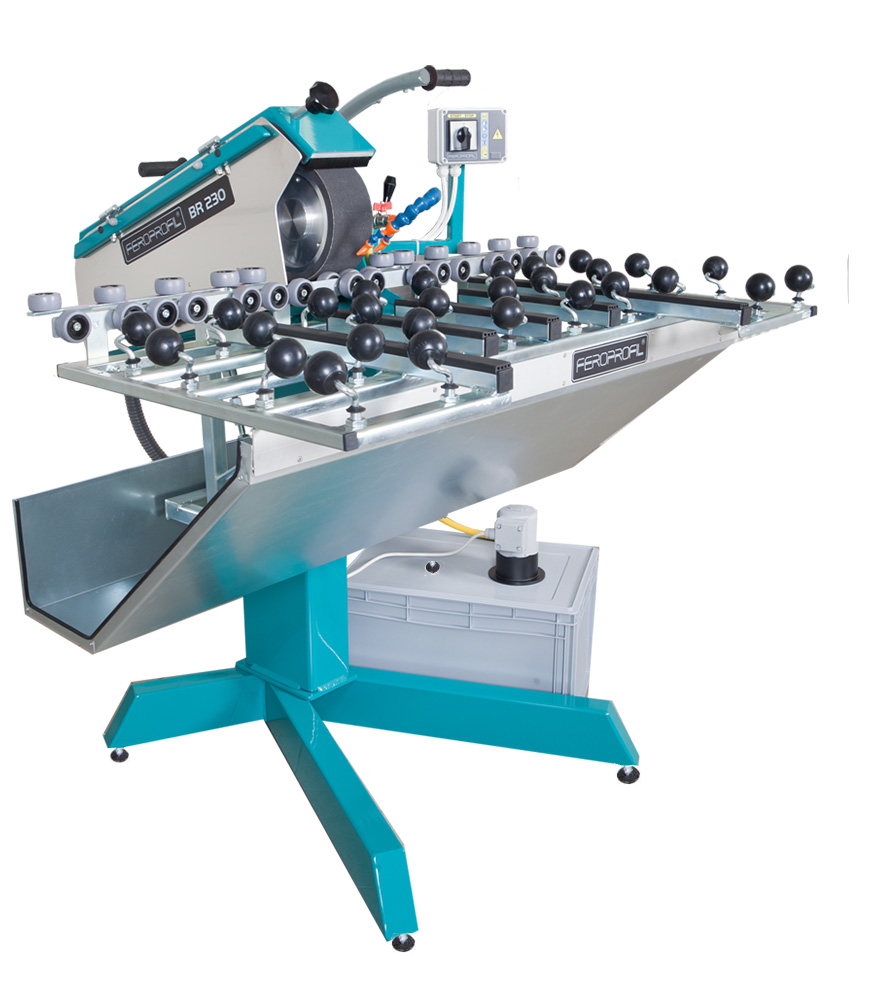

Horizontal glass edging machine BR 230

FEROPROFIL Horizontal glass edging machine BR 230 is belt glass sander machine unique due to its two-cylinder construction.

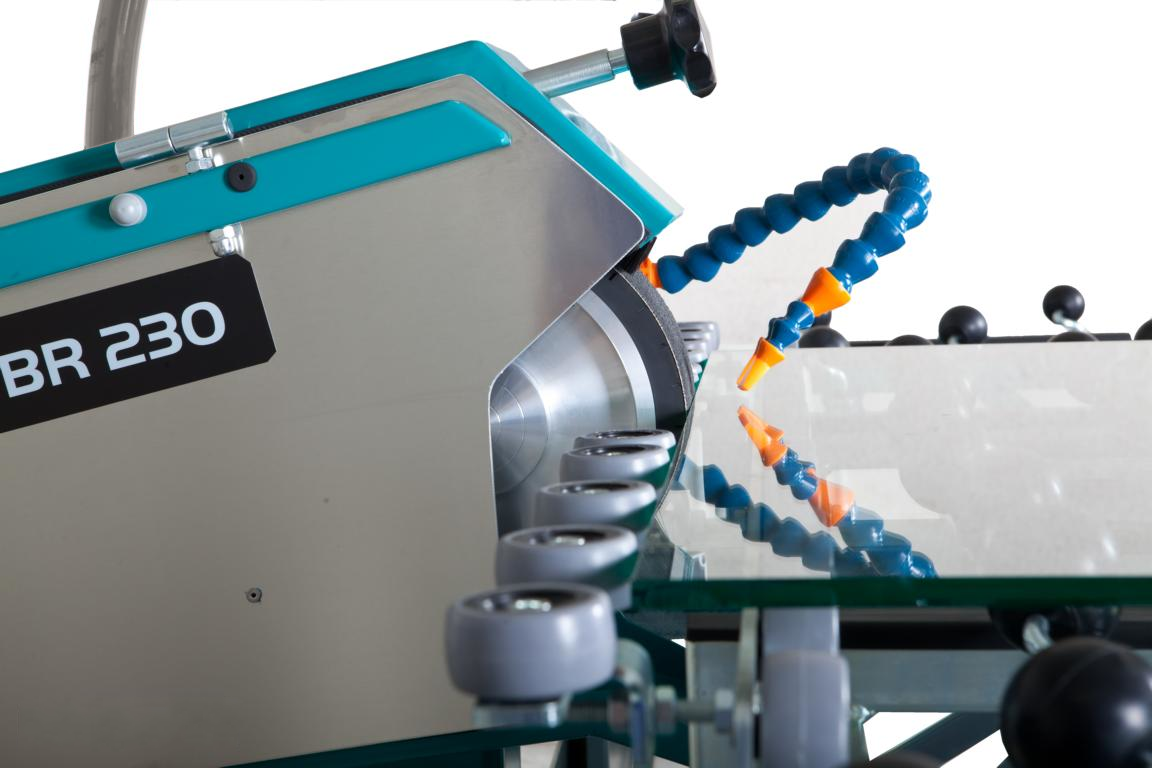

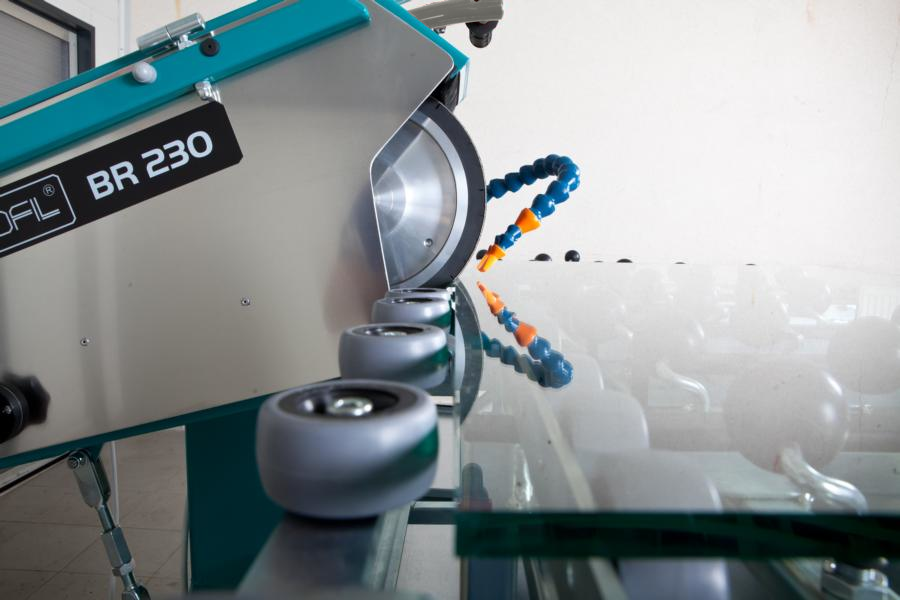

The front contact roller has a diameter of 230 mm and is housed in a protective steel casing for safety. The belt sander is easily controlled by moving the lever back and forward in order for the main cylinder to sharpen the required edges and forehead of the flat glass.

Name	Value
Motor	3×380 V / 1,1 kW, 1400 rpm,
Belt speed	12,4 m/s
Contact roller diameter	230mm
Sanding belt	100 / 1830mm
Working table	2400 /640mm

Name	Value
Finish	hot dip galvanized + comaxid
Depth	1450mm
Width	1240mm
Height	1350mm

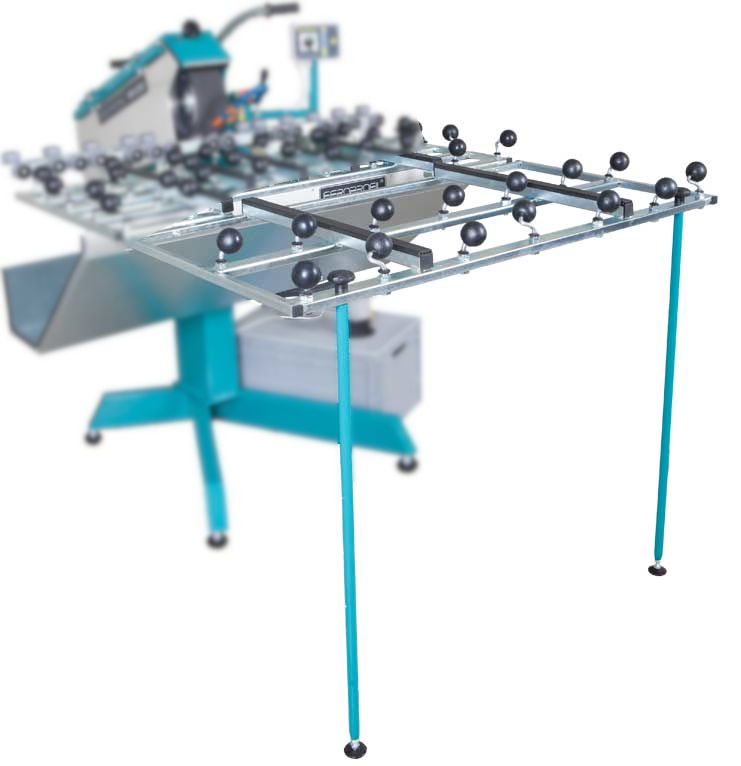

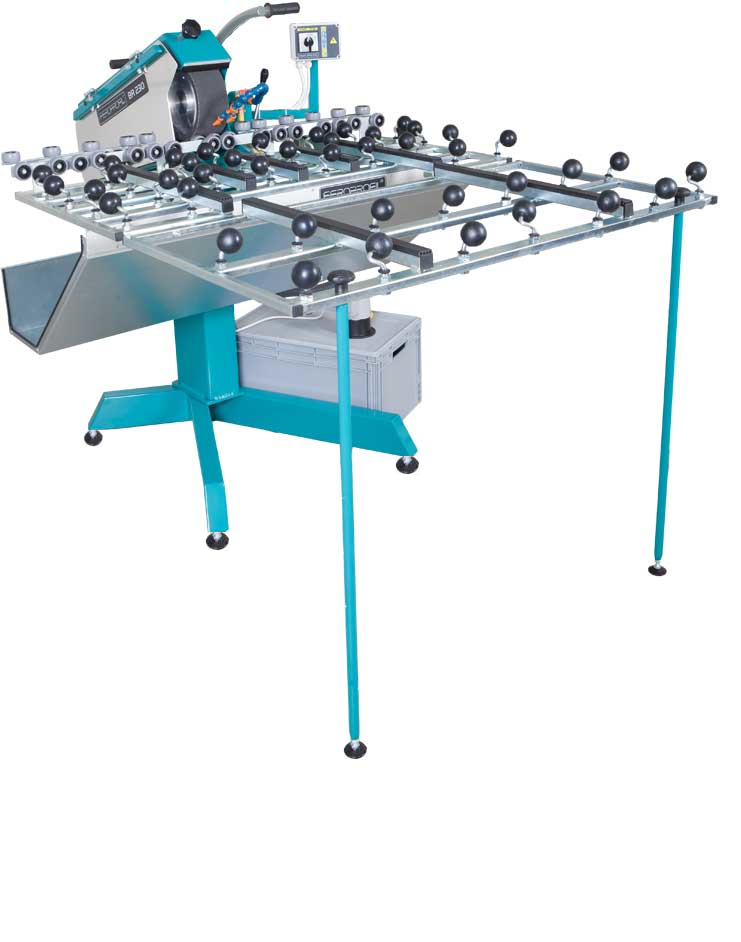

Side extension of working table

Frontal extension of working table

Attachment for inner radius grinding

Do you want price offer on this machine?
