Hydraulic glass cutting table FUL4

Hydraulic glass cutting table FUL4

Hydraulic glass cutting table FUL4

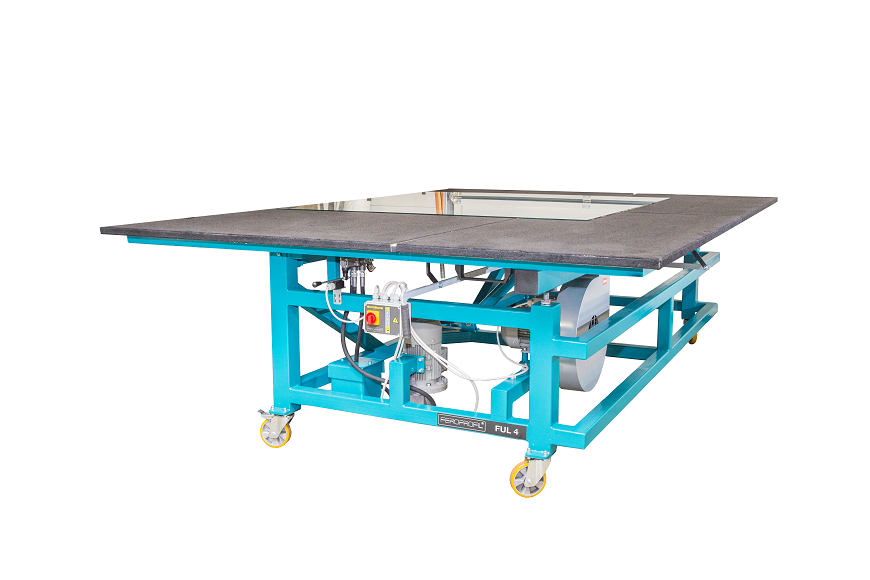

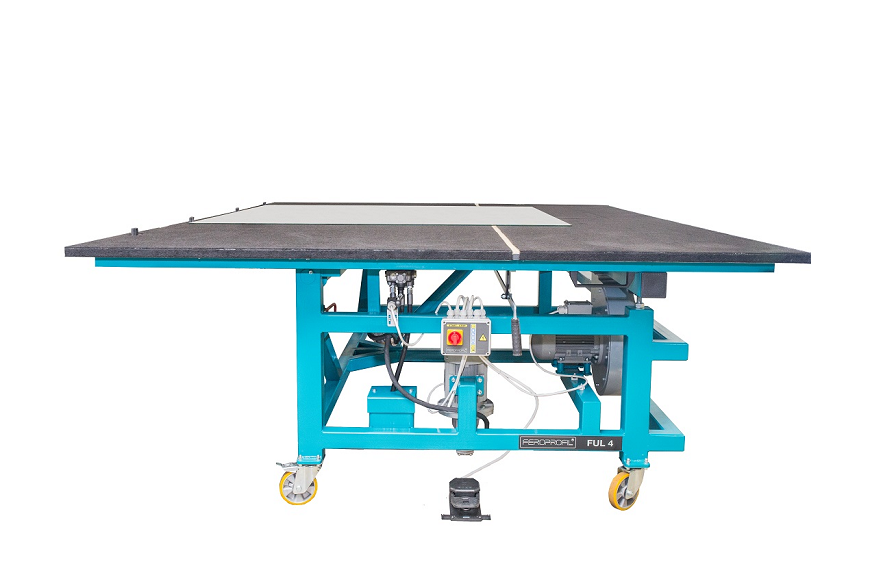

Hydraulic, tilting glass cutting table is ideal machine for serial cutting flat glass.

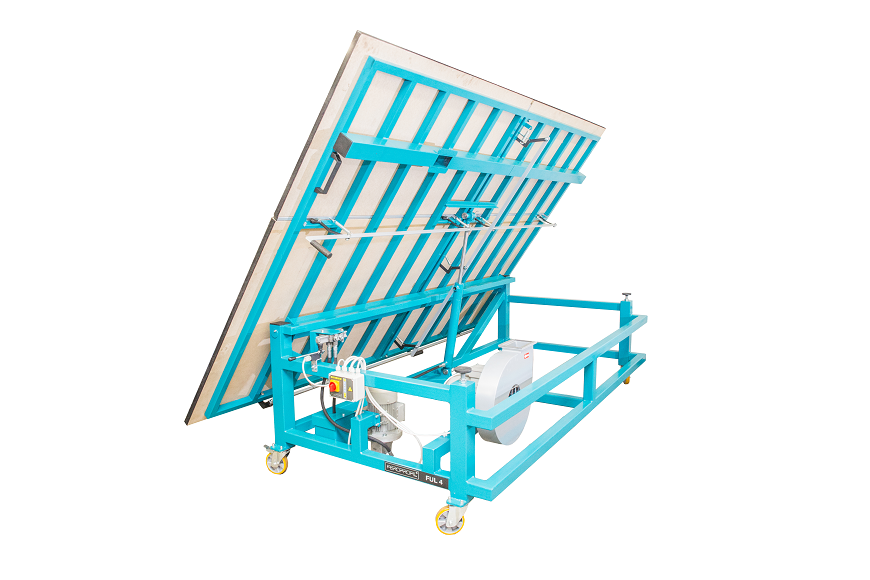

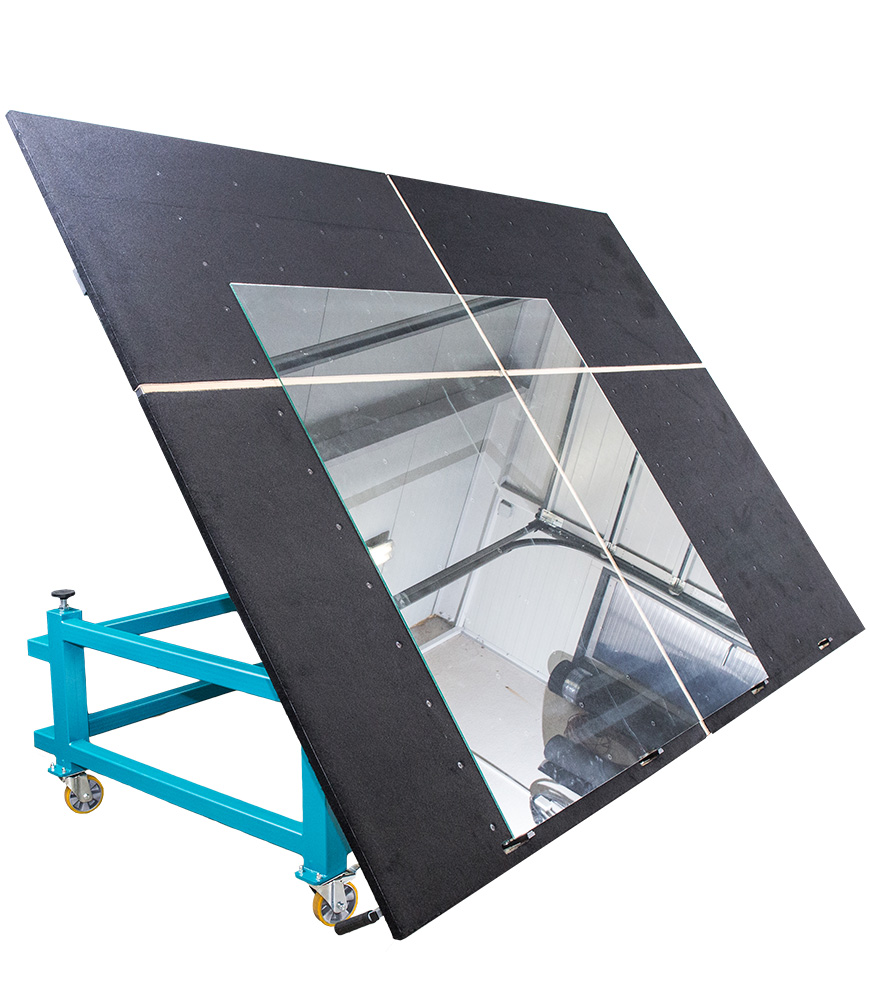

Tilting of table is performed hydraulically with adjustable tilt angle using the control panel.

Simple move with lever will slide out pads for support while loading sheet glass. Easy movement of the glass on table is through air blower, which can be triggered by stepping on pedal.

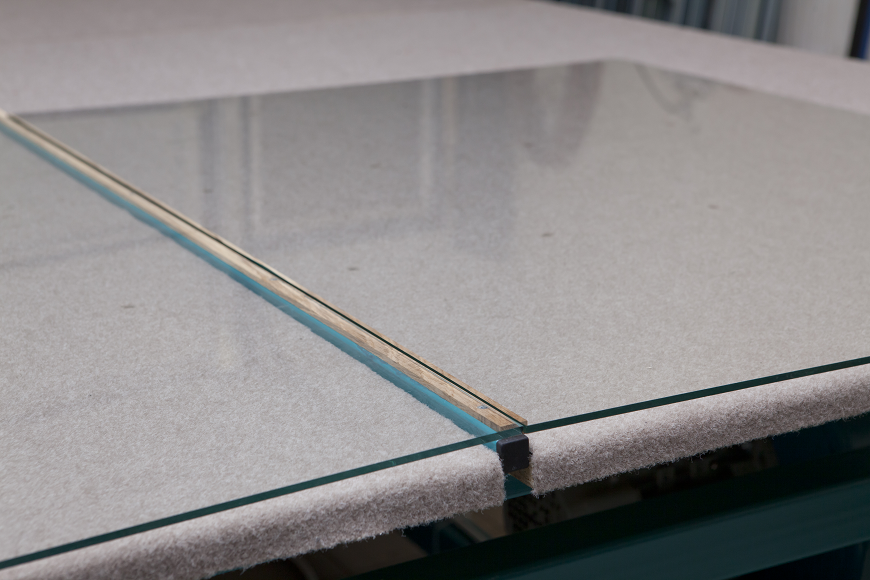

Table is equipped with transverse and longtudinal lath, which is used for breaking cut glass.

Depends on customers demands, we are able to provide the table with any dimensions.

Name Value
Motor 3x380 V / 1,1 kW
Working height of the table 900mm
Max. weight 3 - 20mm
Name Value
Width of working table 2200mm
Lenght of working table 2800mm

Optional accessories

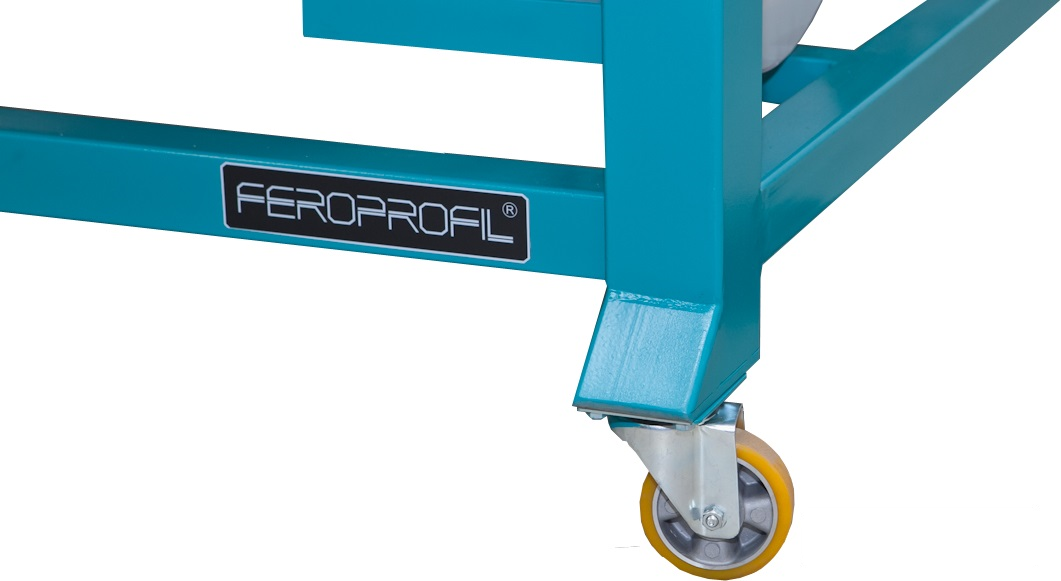

Revolving wheels 4pcs.

Easily move your table with 4 wheels with stop.
