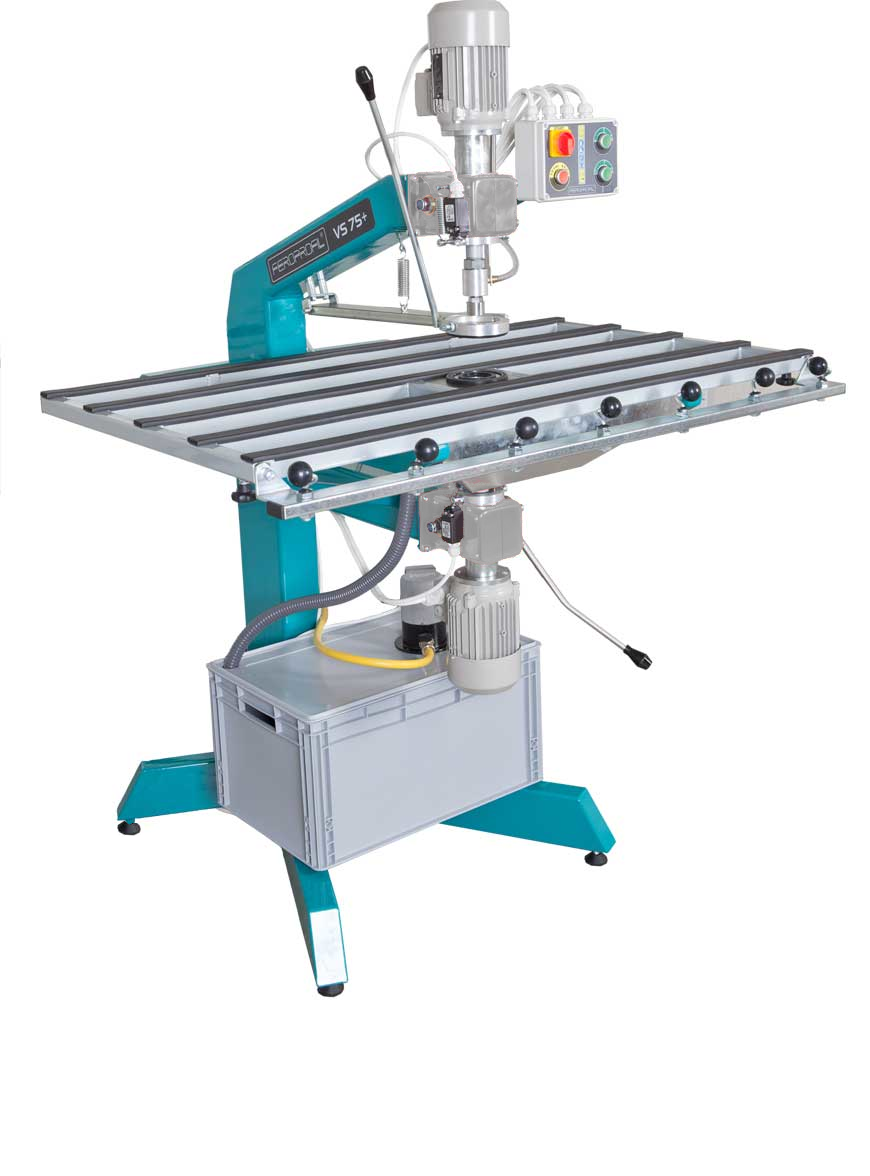

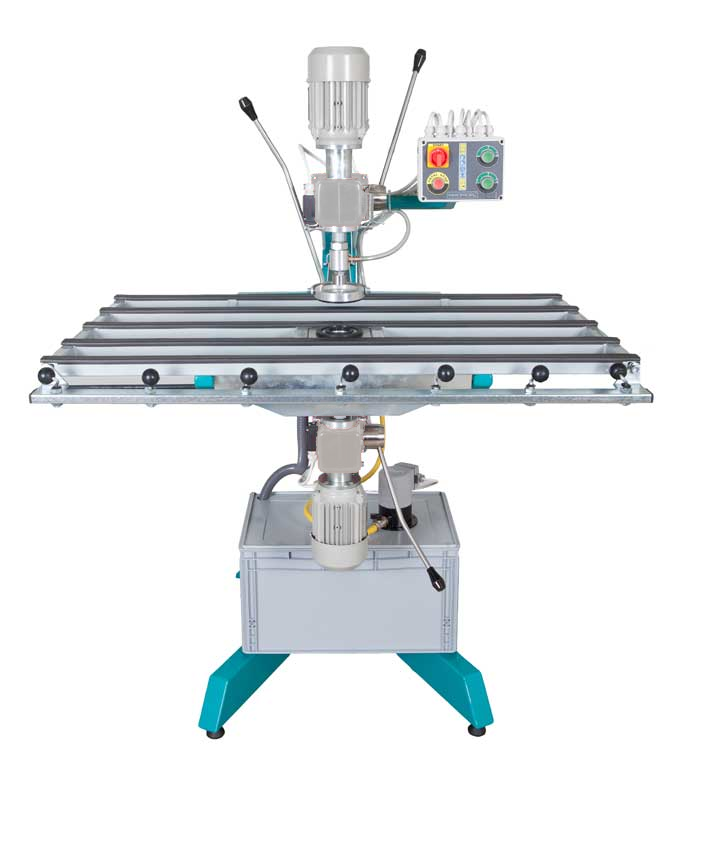

Horizontal glass drill VS 75

Horizontal glass drill VS 75

Horizontal glass drill VS 75

Double – sided horizontal diamond drilling machine is designed for drilling holes from Ø 4mm to Ø 75mm average. When using the inverter can drill holes up to Ø 100 mm.

Our drilling machines are equipped with changeable rings for varied drilling sizes in order to maintain maximum pressure ( please refer to video for more details ).

During the drilling process a cooling liquid is sprayed into the cavity of drill bit to facilitate the process. This process can be regulated by the operator of the machinery during the drilling process.

Accesories: A sliding lath can be pulled out to facilitate the process as well as a height adjustable stand for ease of use for larger formats / products.

Name Value
Motor 3x400 V, 2x 0,37 kW, 1400 rpm.
Hole diameter 4 - 100mm
Drilled glass thickness 3 - 20mm
Working table 1250 x 720mm
Name Value
Finishing Komaxid
Depth 1000mm
Width 1240mm
Height 1750mm

Optional accessories

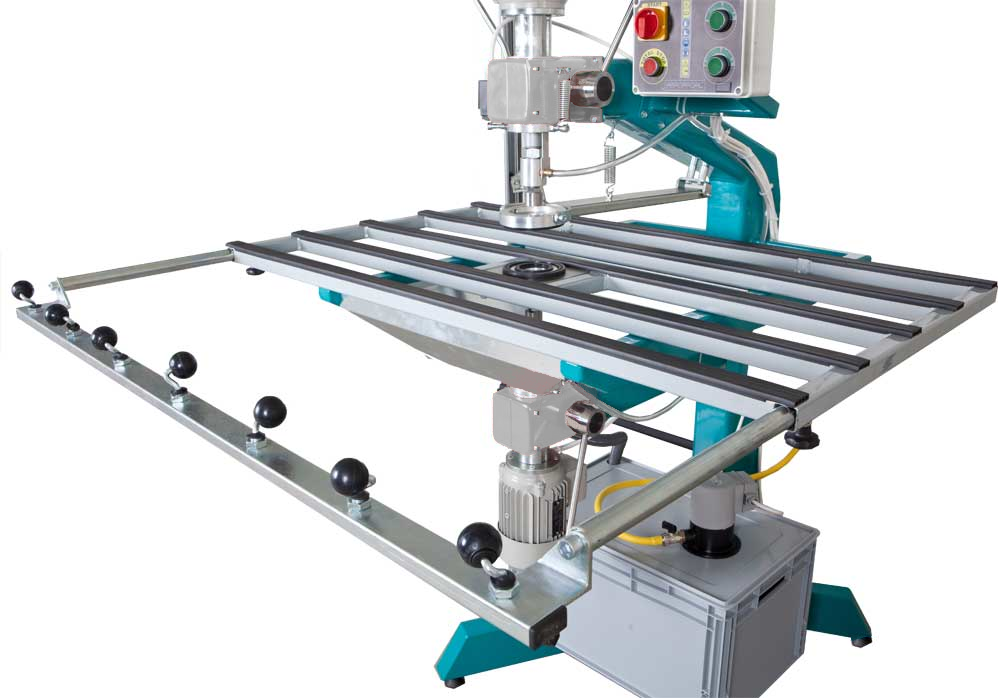

Frontal sliding lath

Frontal sliding lath

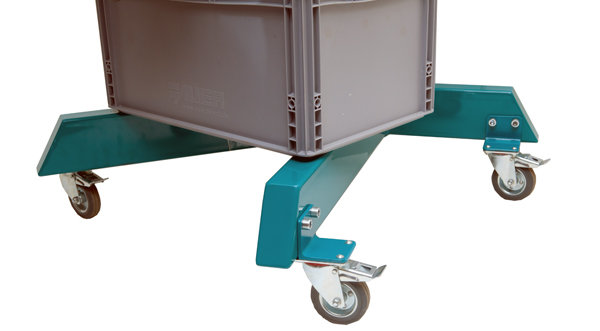

Revolving wheels 4pcs + console

Revolving wheels 4pcs + console

Side height adjustable stands

Side height adjustable stands

Adjustable ruler

Adjustable ruler
